Model

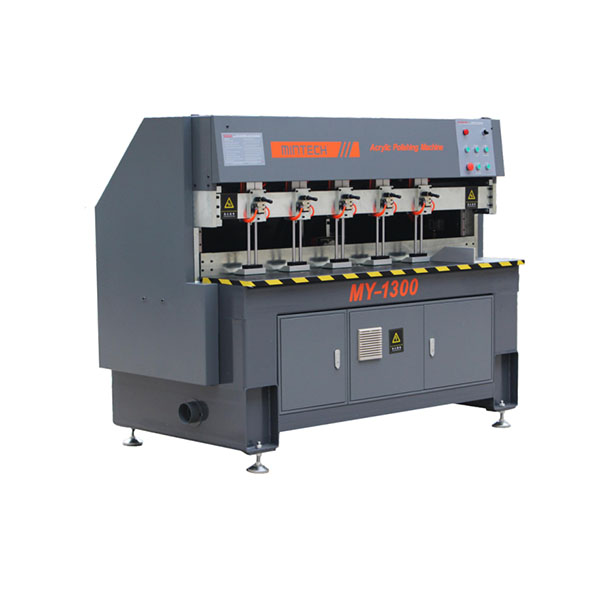

MY-1300

Machine size

2240mm x 1000mm x 1520mm

Main structure

Granite

Work area

L0-1300mm or Unlimited

Working thickness

0~110mm

Working depth

0-2mm

Spindle speed

7000~9000RPM

Work speed

0~1000mm/min

Bevel polishing

0°~60°

Cutter feed method

Cylinder propulsion

parameter adjustment

manual adjustment

Machining model

Spindle feed

Speed regulation

Frequency conversion

Program control

PLC

Machine power

3KW AC 50~60hz，3ph 380V

Compressed air

0.6~0.8Mpa

Machine weight

1000Kg
